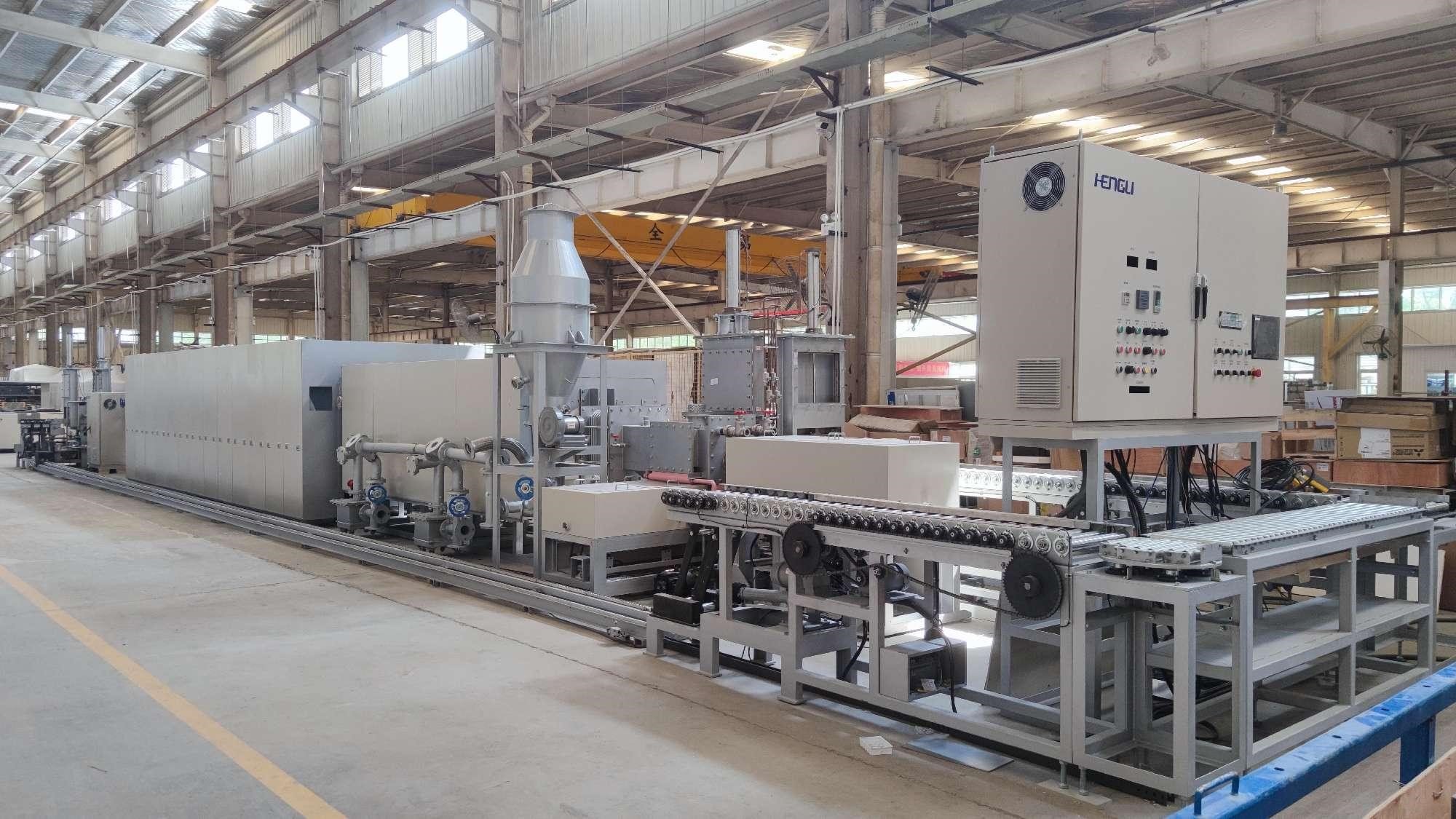

HT SERIES PUSHER FURNACE
Features
- 1700°C Maximum Temperature Rating
- Air/Nitrogen Capability
- Gas Tight Chamber
- Independent Temperature Control in Each Zone
- Active Cooling
- 3°C Cross Belt Uniformity
- Automatic Circulation Hydraulic Pusher
- Adjustable Exhaust Capacity
- Custom Voltage Configuration
- Low Oxygen Content <= 10PPM
- Dew Point Control
Applications
This product is specifically designed for thermal processing applications in various industries, including preheating, sintering, heat treatment, calcination, carbonization, and pyrolysis. It is particularly suitable for electronic components, including MLCC products, zirconia materials, piezoelectric materials, pressure-sensitive materials, PTC materials, NTC materials, chip antennas, filters, silicon, nanomaterials, and other electronic components.
Advantages
- Large Scale Production
- Uniform and Stable Temperature Control
- Exhaust and Drainage System

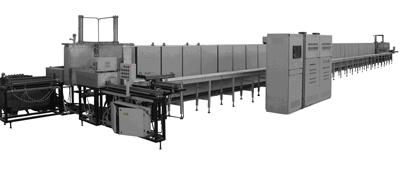

HT Series Pusher Furnace
| Typical Configuration | Control Zone | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Maximum temperature | 1700°C | ||||||||||||
| Atmosphere | Multiple (ex. N2, O2) | ||||||||||||
| Chamber width | 12 in (30 cm) - 26.7in (68 cm) | ||||||||||||
| Above board clearance* | 9 in (23 cm) | ||||||||||||
| Heated zones* | 5 - 12 | ||||||||||||
| Overall system length* | 39 ft (1200cm) - 92 ft (2800cm) |
* Highly customizable according to specific requirement.
