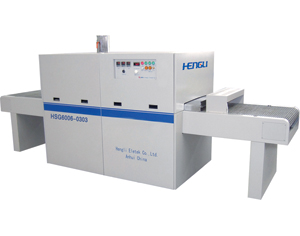

HSG SERIES THICK FILM DRYING FURNACE
Features
- Infrared Heating
- SUS Belt Conveyor and Tunnel
- Long Entrance and Exit Table
- Perfect Exhaust Design
Applications
Drying and curing, such as thick film circuit, paste on SMD terminal, etc.
Advantages
Highly efficient; Super light insulation materials; Energy efficient; Multi-zone control; Convenient adjustment.
Pricing
Data Sheet
HSG Series Drying FurnaceHSG Series Drying Furnace Models (How to read furnace model numbers?)
| Model | Control Zone | Belt Width | Overall Length |
|---|---|---|---|
| HSG2705-0304 | 3 | 270mm | 8150mm |
| HSG3004-0304 | 3 | 300mm | 3630mm |
| HSG5502-0404 | 4 | 550mm | 3645mm |
| HSG6002-0304 | 3 | 600mm | 3630mm |
| HSG6310-0503 | 5 | 630mm | 7335mm |
HSG6005-0304 Drying Furnace Specifications
| Specification | HSG6005-0304 |
|---|---|
| Rate Temperature | 350 deg.C |
| Operation Temperature | RT+20-300 deg.C |
| Belt Width | 600mm/24" |
| Heating Length | 1500mm/59" |
| Control Zones | 3 |
| Speed Range | 50-450mm(2"-18")/min (other speed range as required) |
| Outside Dimension | L3700mm/146" x W1200mm/47" x H1530mm/60" |
| Net Weight | 500 KG |
| Power | AC 200-480V, 3 phase, 50/60HZ, 4/5 wire, 15KVA |
| Spare Part | 2 heating tubes, cooling fan |
Options and Customizations
| Available Options & Customizations |
|---|
| Belt Speed Range |
| Belt width from 100mm to 1000mm |
| Customized heating and cooling length |
Our dedicated engineers will always take the extra step to work with clients for customized designs.
