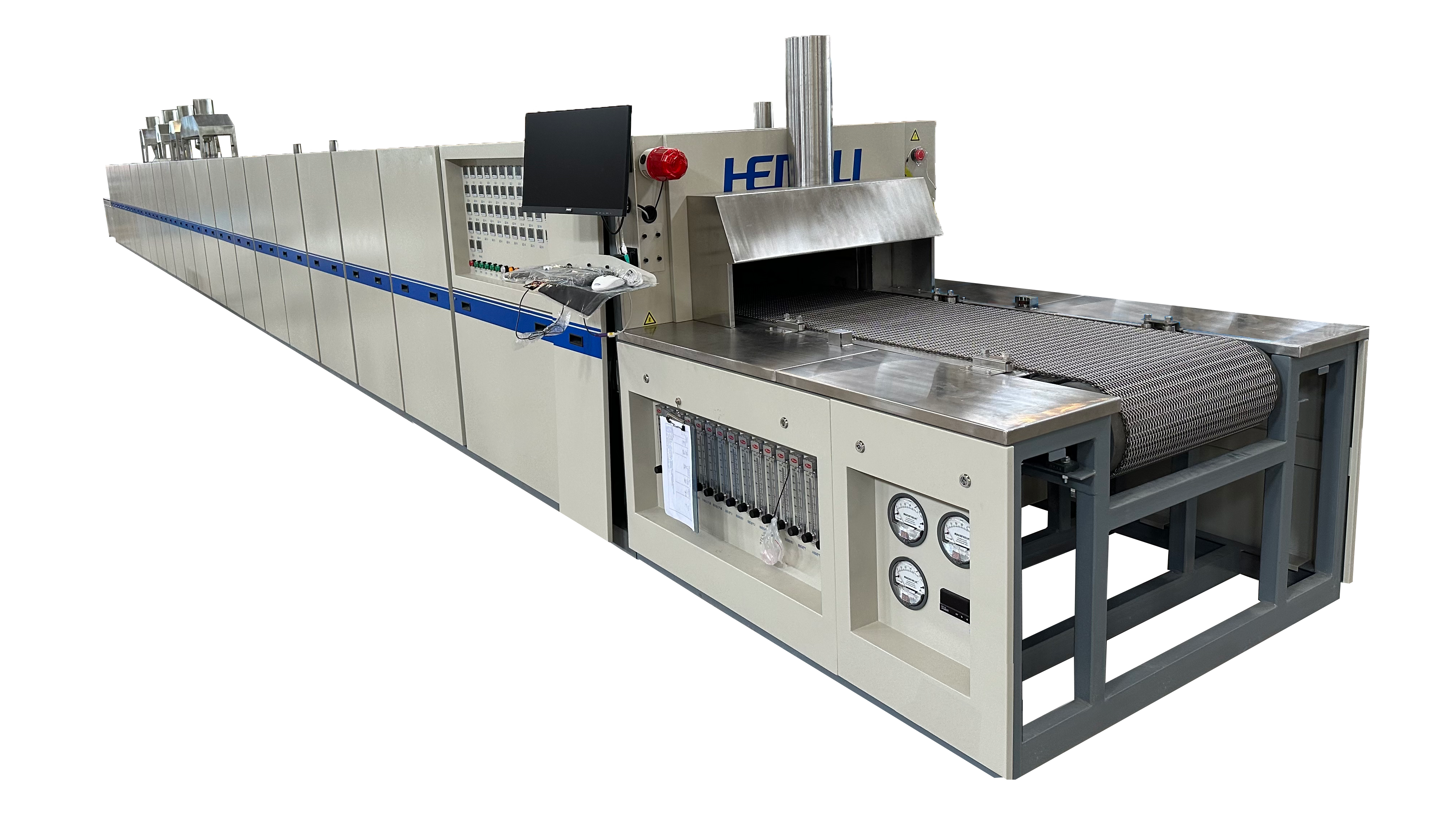

HSK Series Fast Fire Furnace
Fast Firing Furnace for Thick Film, Electronic Components and Advanced Materials
The XMZ HSK Series is a continuous fast fire belt furnace designed for precision high-temperature processing in air. Widely used as a thick film furnace for thick film firing, the HSK platform also supports precision resistors, heaters, sensors, electronic components, LTCC post-firing, solar substrates, ceramics, powder sintering, and other applications requiring controlled temperature profiles and continuous production.
Rated up to 1,050°C, the HSK Series combines a low-mass refractory heating chamber, independently controlled temperature zones, stable conveyor transport, controlled airflow and exhaust, and configurable heating and cooling sections. Standard HSK thick film furnaces commonly use six or seven control zones, while larger and application-specific systems can incorporate additional zones, wider belts, greater product clearance, and longer process sections.
HSK Fast Fire Furnace Overview
The HSK furnace platform is a continuous fast firing furnace designed for high-temperature processing in air and rated up to 1,050°C. It is widely used for thick film and electronic component firing, with furnace length, belt width, temperature zones, conveyor speed, exhaust, and cooling configured for the required firing profile and production capacity.
The furnace uses an ultra-clean, low-mass refractory heating chamber with Fully Enclosed Coil (FEC) heaters, independently controlled temperature zones, programmable belt speed, and controlled exhaust. Standard HSK models cover common thick film applications, while larger custom systems are available for wider products, higher throughput, and other continuous high-temperature processes.
HSK Platform at a Glance
| Capability | HSK Platform |
|---|---|
| Process atmosphere | Air |
| Maximum rated temperature | Up to 1,050°C for representative HSK systems |
| Heating architecture | Ultra-clean, low-mass refractory chamber with Fully Enclosed Coil (FEC) heaters integrated into ceramic insulation panels |
| Temperature control | Multiple independently PID-controlled heating zones; zone number and heating length can be customized for the required temperature profile |
| Conveyor | Balanced spiral Nichrome V mesh belt; belt width, mesh design and conveyor speed can be customized for the product and process |
| System configuration | Heating length, cooling length, belt width, working height, exhaust, controls and product handling can be customized |
| Primary applications | Thick film circuits, precision resistors, thick film heaters, sensors, electronic components, LTCC post-firing, solar substrates, ceramics, glass/glaze firing and powder sintering |
Thick Film Firing Furnace and Electronic Component Applications

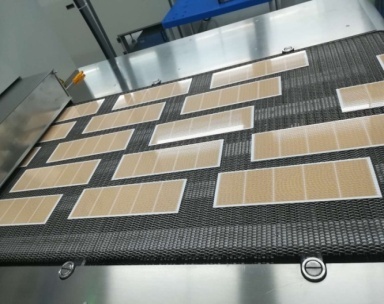

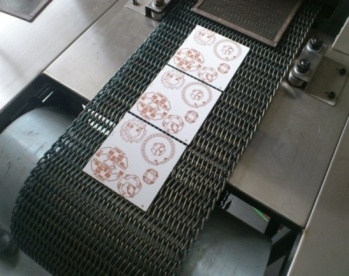

The HSK Series is widely used as a thick film belt furnace and electronic component firing furnace for precision electronic manufacturing. Applications include thick film circuits, precision resistors, heaters, sensors, and other electronic components, with conductor, resistor, and dielectric paste firing among the common processes. Selected LTCC post-firing and metallization processes can also be configured on the HSK platform.
When configuring a precision resistor firing furnace, cross-belt temperature uniformity and firing-zone stability directly affect process consistency. HSK systems use independently controlled heating zones and optimized heater distribution to control the temperature profile along the conveyor and minimize temperature differences across the belt.

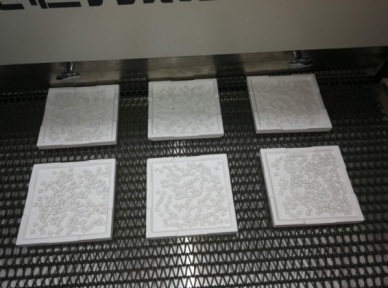

Thick film heater firing and sensor firing are configured around the paste chemistry, required burnout and peak firing profile, exhaust and cooling conditions.
Multi-Zone Temperature Control and Profile Flexibility

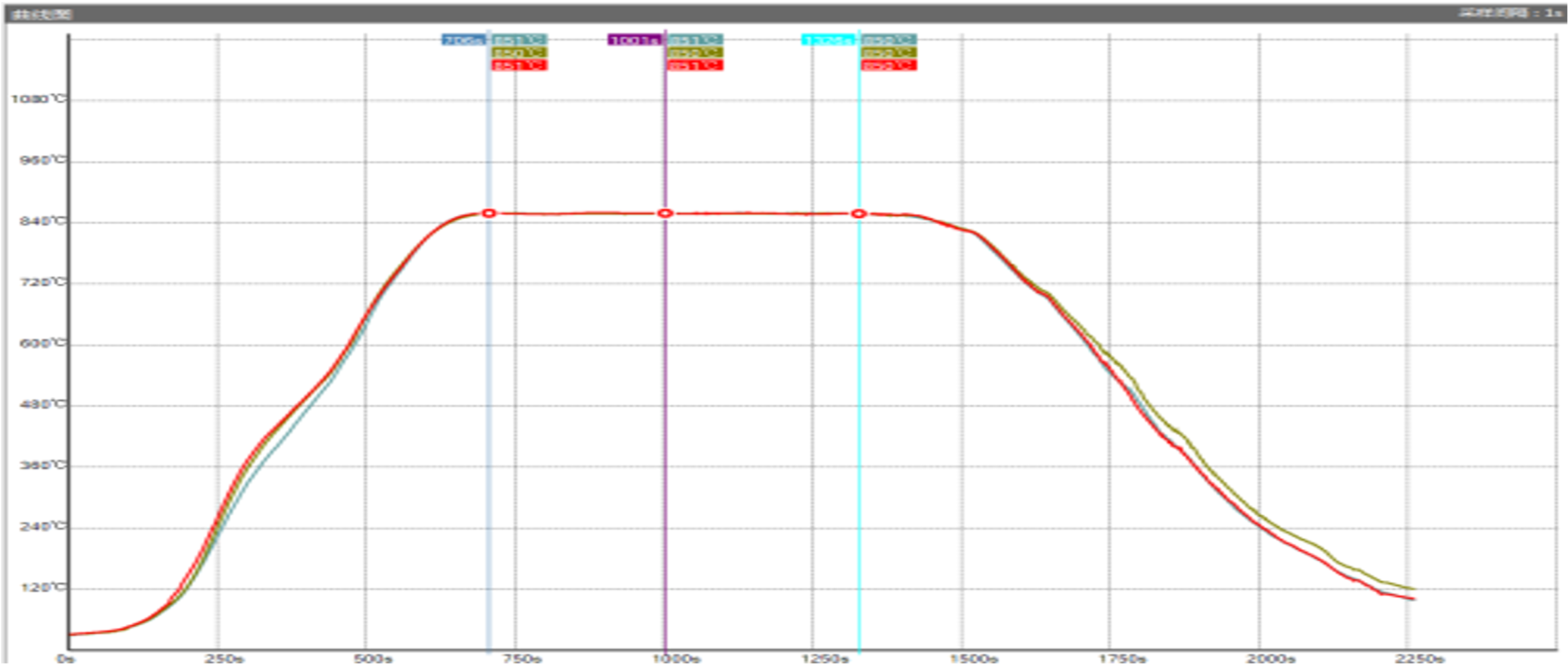

HSK furnaces use multiple independently controlled heating zones to develop the required temperature profile along the conveyor. Each zone uses thermocouple feedback and PID temperature control, while wider furnace configurations can use multiple heating sections across the belt width to improve cross-belt temperature uniformity. This fast firing belt furnace architecture provides profile flexibility through independently controlled zones.
Zone length and the number of control zones are selected for the required temperature profile, peak temperature, dwell time, conveyor speed, product loading, and production capacity. Standard XMZ thick film furnaces commonly use six or seven control zones, while longer furnaces and integrated drying-and-firing systems can use additional zones as required.
The same multi-zone architecture can be configured for other air-atmosphere processes, including LTCC post-firing, solar substrate firing, ceramic processing, and powder sintering. Different zone lengths and heating-section arrangements can be used where the process requires longer dwell times, larger products, or higher throughput.
Temperature Uniformity Across the Working Area

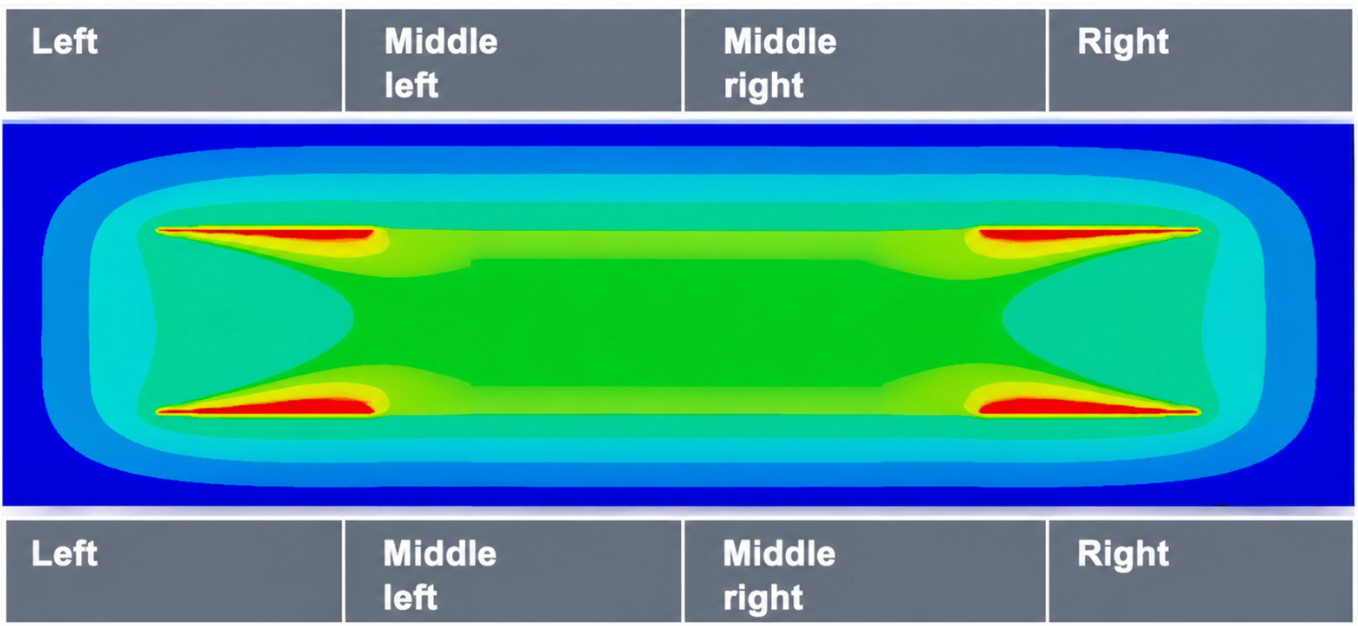

For precision firing, temperature uniformity must be considered across the belt as well as along the furnace. HSK thermal design can use optimized heater layout and left-center-right power distribution to reduce cross-belt temperature differences and improve firing-zone stability.

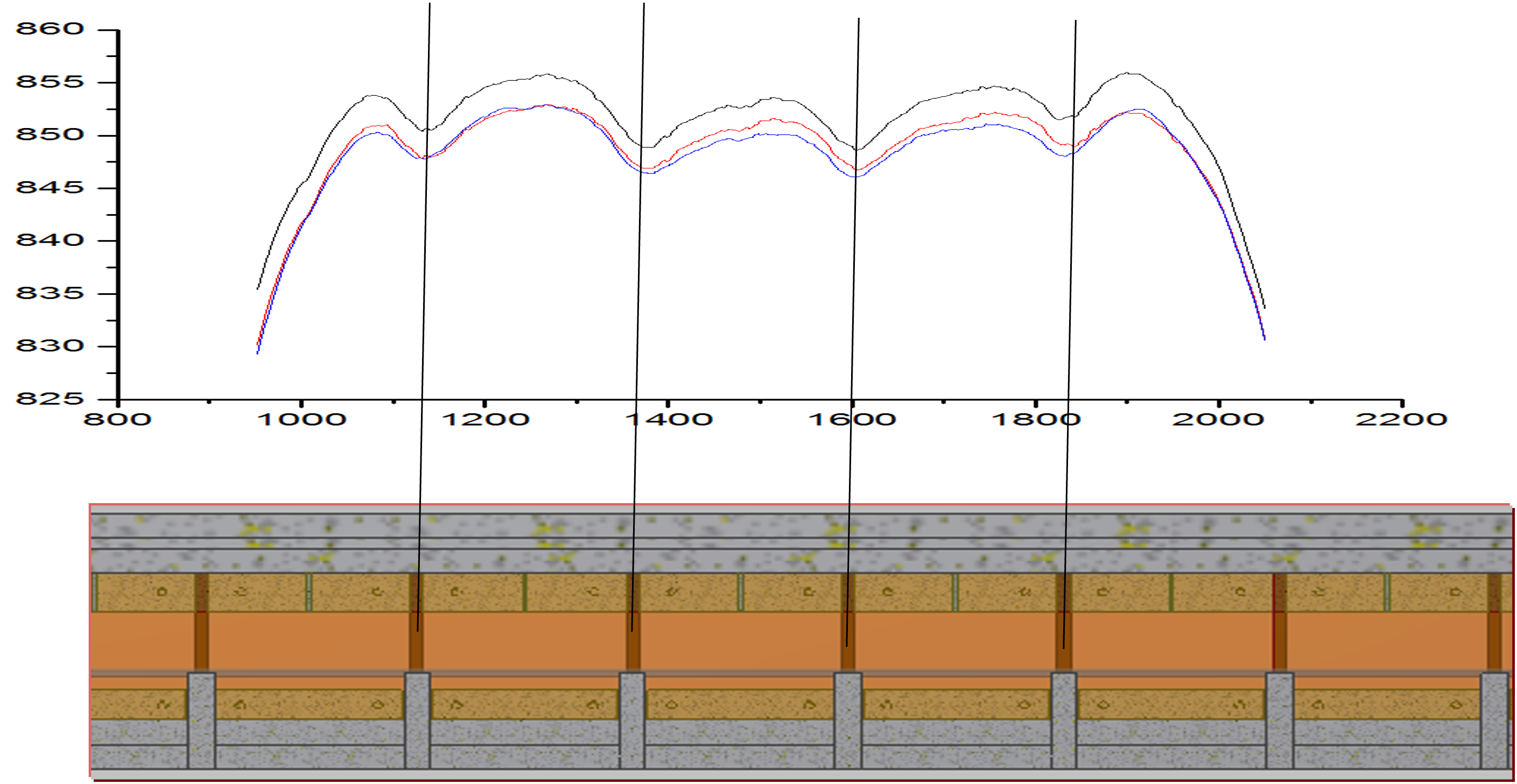

Temperature uniformity is also affected by the transition between adjacent heating zones. HSK furnace design addresses heat loss at zone connections to reduce temperature dips between zones and maintain a smoother firing profile along the conveyor.
This becomes more important as belt width, product size and working height increase. For larger products, furnace uniformity may need to be evaluated through the usable three-dimensional working space rather than at a single point or centerline. HSK systems for taller products have used multi-point temperature verification and independently managed heater regions to control the thermal environment across the working area.
Published temperature-uniformity values should be tied to the specific furnace configuration, operating temperature, loading and test method. Project-specific development data should not be interpreted as a universal HSK guarantee.
Fast Thermal Response and Low-Mass Heating Chamber
The HSK Series uses an ultra-clean, low-mass refractory heating chamber with Fully Enclosed Coil (FEC) heaters integrated into ceramic insulation panels. The low thermal mass supports rapid furnace heat-up and cool-down while reducing heat storage in the chamber. Representative HSK furnaces can heat from ambient temperature to 1,050°C in approximately 40 minutes, while the product firing profile is controlled independently through zone temperatures and conveyor speed.
Airflow, Exhaust and Clean Processing
The HSK exhaust system is designed to maintain continuous airflow through the firing chamber and remove process vapors generated during firing. Depending on furnace configuration, the system can incorporate entrance and exit curtains, full-width exhaust collection, adjustable exhaust flow, and removable condensate traps.
For thick film processes, effective exhaust is particularly important during organic removal. Exhaust layout and airflow are selected to reduce stagnant regions and prevent condensed process residues from returning to the firing chamber.
For applications with higher organic loading or taller products, inlet and outlet conditions, gas-flow distribution and furnace-entrance exhaust collection can be adapted to the product geometry and process load.
Conveyor Stability and Product Handling
This conveyor firing furnace uses a balanced spiral Nichrome V mesh belt with programmable conveyor speed. Belt speed can be monitored through the control system, with alarms available for deviations in conveyor speed or furnace temperature. Stable belt speed helps maintain consistent residence time through each stage of the firing profile.
Belt width, working height, support geometry, tracking, loading pattern and belt cleanliness are selected around the product. Ultrasonic belt cleaning can be incorporated where process cleanliness and long-term belt condition are important.
Heating, Cooling and Integrated Thermal Sections
HSK systems can be configured with different heating and cooling lengths to match the required process time and throughput. Cooling length and cooling capacity can be selected around the required product temperature profile, with water/air cooling incorporated where faster or more controlled cooling is required.
For processes that require drying before high-temperature firing, the HSK can be integrated with an upstream drying section and downstream cooling. Integrated system shares the same conveyor drive, and belt cleaning. This configuration is used for applications such as thick film heater production, where printed products are dried before entering the high-temperature firing section.
Applications for HSK Fast Firing Furnaces
The HSK Series is a general fast firing belt furnace platform for continuous air-atmosphere processing, with a strong installed base in thick film and precision electronic applications. Representative applications include:
- Thick film circuits and thick film paste development
- Precision and chip resistor firing
- Thick film heaters and heating elements
- Sensor and electronic component firing
- Selected LTCC post-firing and metallization processes
- Glass and glaze firing
- Solar substrate and solar-material thermal processing
- Ceramic firing and heat treatment
- Powder sintering and other continuous air-atmosphere processes
HSK belt furnaces are designed primarily for continuous processing in air. Applications requiring nitrogen, hydrogen, controlled low-oxygen, or other process atmospheres are handled by XMZ controlled-atmosphere furnace platforms.
Representative Standard HSK Configurations
The HSK2505, HSK3505 and HSK6305 are standard thick film fast fire furnace configurations for electronic component and precision firing applications, and provide practical starting points for customized HSK furnace designs.
| Parameter | HSK2505-0611 | HSK3505-0711 | HSK6305-0711 |
|---|---|---|---|
| Atmosphere | Air | Air | Air |
| Rated Temperature | 1,050°C | 1,050°C | 1,050°C |
| Belt Width | 250 mm / 10 in | 350 mm / 14 in | 635 mm / 25 in |
| Tunnel Height | 50 mm / 2 in | 50 mm / 2 in | 50 mm / 2 in |
| Heating Length | 2700 mm / 106 in | 3150 mm / 124 in | 3220 mm / 127 in |
| Cooling Length | 1200 mm / 47 in | 1300 mm / 51 in | 1200 mm / 47 in |
| Control Zones | 6 | 7 | 7 |
| Conveyor Speed | 30–200 mm/min | 30–200 mm/min | 40–200 mm/min |
| Typical Temp. Uniformity | ±1°C | ±1°C | ±2°C |
| Overall System Width | 1200 mm / 47 in | 1350 mm / 53 in | 1500 mm / 59 in |
| Overall System Length | 6090 mm / 240 in | 6905 mm / 272 in | 6905 mm / 272 in |
| Overall System Height | 1350 mm / 53 in | 1350 mm / 53 in | 1350 mm / 53 in |
Typical uniformity values shown are model-specific published references. Operating temperature, loading and the test method must be confirmed for guaranteed project performance.
Custom HSK Furnace Systems

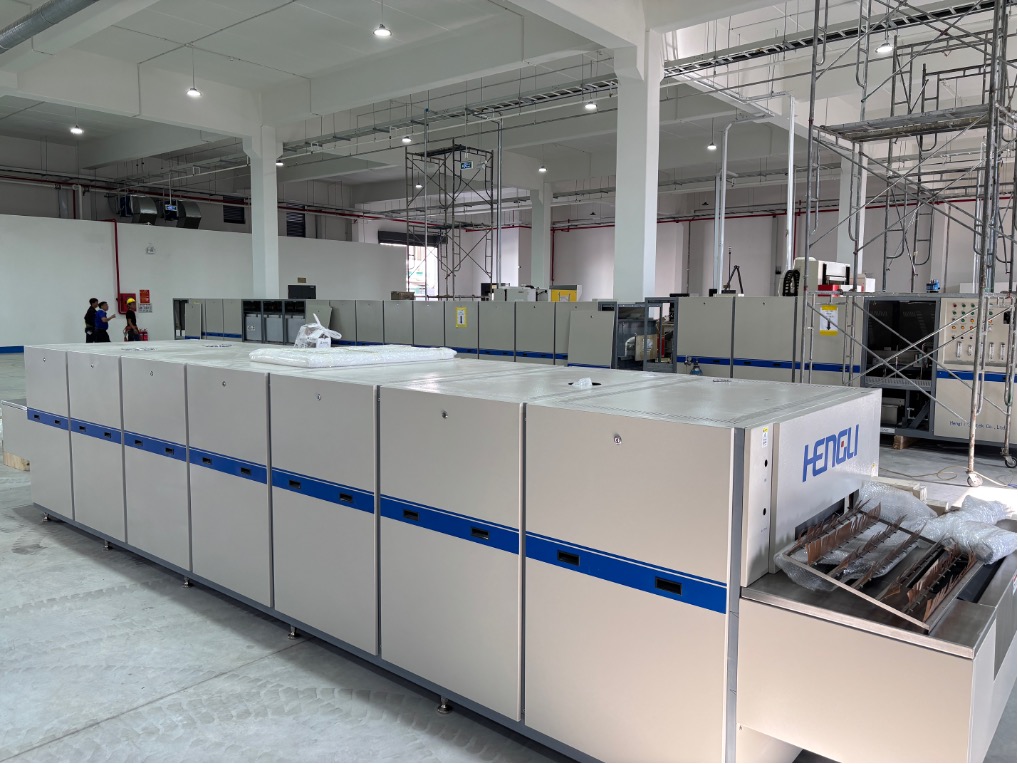

HSK furnaces can be engineered beyond the representative standard models for wider products, greater working height, longer firing profiles and higher production capacity. XMZ/HENGLI has experience with wide-belt HSK systems, including application-specific furnaces substantially wider than the above models.
Custom configuration can include additional temperature zones, different zone lengths, wider conveyor belts, higher process clearance, extended heating or cooling sections, specialized exhaust, belt support, computer controls and integrated drying/firing arrangements. Final dimensions and performance requirements should be established from the actual product and process rather than inferred from a standard model table.
Options and System Configuration
HSK furnaces are available with a Windows PC-based control system for system monitoring, alarm and operating history, scheduled start-up and shut-down, and temperature profile storage and review. The system typically includes three built-in thermocouple profiling channels, with additional channels available when required. An ultrasonic belt cleaning system is also available to maintain belt cleanliness during continuous operation.
Frequently Asked Questions
What is an HSK fast fire furnace?
The HSK Series is a continuous fast fire belt furnace platform for precision high-temperature processing in air. It is widely used for thick film and electronic component firing, as well as other continuous air-atmosphere thermal processes.
Is the HSK only a thick film furnace?
No. Thick film is a major HSK application, but the HSK is a broader fast-fire furnace platform. It is also used for precision resistors, heaters, sensors, LTCC post-firing, solar substrates, ceramics, glass/glaze firing, powder sintering, and other continuous high-temperature processes in air.
How is an HSK furnace configured for a specific process?
HSK configuration starts with the application, product temperature profile, product size and loading, production capacity, and process requirements such as binder burnout and exhaust load. These requirements determine the furnace length, temperature-zone arrangement, belt width, working height, conveyor speed, airflow and exhaust design, and cooling configuration. Standard HSK models can serve as starting points for a customized furnace design.
Can HSK furnaces be built for wider or taller products?
Yes. Most standard HSK configurations use belt widths below one meter, but custom systems can be considerably larger. XMZ/HENGLI has built application-specific HSK furnaces with belt widths up to approximately 2 meters and furnace openings up to approximately 1 meter high. Wide or tall furnaces require additional attention to heater layout, belt support, product loading, and temperature uniformity across the usable working area
Can one HSK furnace run different products or firing profiles?
Often, yes. Independent temperature zones and adjustable conveyor speed allow different firing profiles to be developed on the same furnace. A furnace with more control zones generally provides greater profile flexibility, while products with less demanding heating-rate or dwell-time requirements are easier to accommodate on the same system.
Can an HSK furnace combine drying, firing and cooling in one continuous system?
Yes. The HSK high-temperature firing section can be integrated with upstream drying and downstream cooling for processes that require multiple thermal stages. The length and configuration of each section are selected for the required product profile and production rate.
When should I use a controlled-atmosphere furnace instead of an HSK?
Standard HSK furnaces are designed for processing in air. Products that are sensitive to oxidation or processes requiring nitrogen, hydrogen, controlled low-oxygen, or other specialized atmospheres should use an XMZ controlled-atmosphere furnace platform.
Configure an HSK Furnace for Your Process
Selecting thick film firing equipment starts with the product, firing profile and production requirements rather than a standard furnace size alone. XMZ Technologies can review your material system, product dimensions, loading pattern, required temperature profile, throughput, exhaust and cooling requirements to determine an appropriate HSK furnace configuration.
